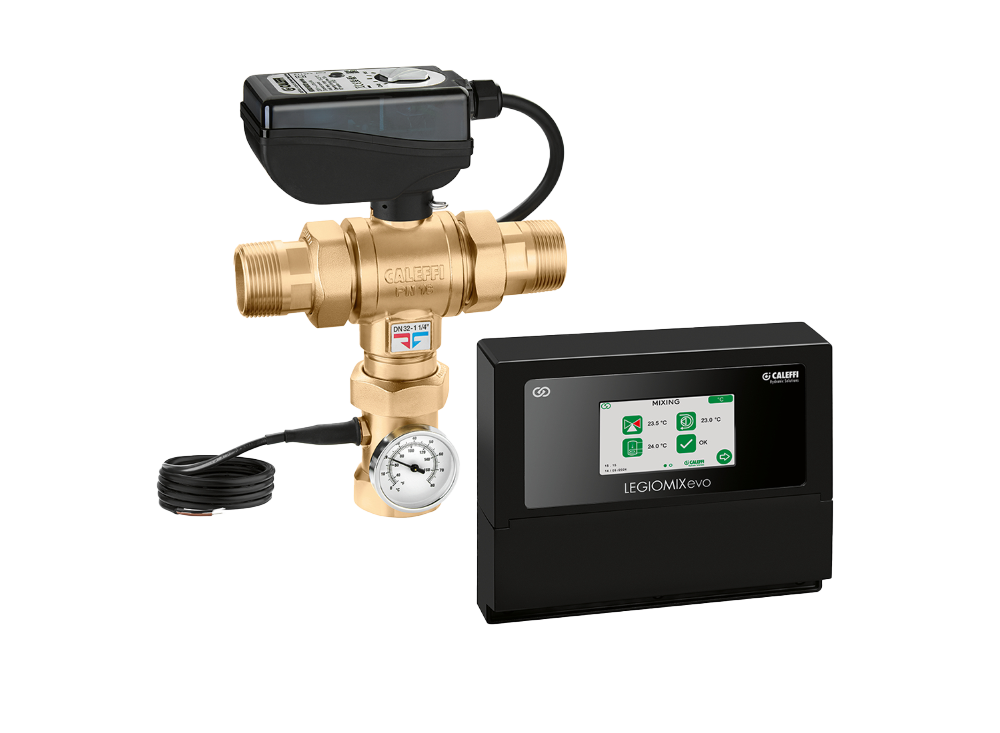

Caleffi 6000 20mm Legiomix

Electronic 6000 thermostatic tempering valve with 20mm unions.
For use on high demand centralised hot water systems with a flow rate between 8 and 172L/min
Recommended working pressure 100 – 500kPa (balanced)
Kv = 140L/min
Union connections with fibre washer seal (without check valves)
Temperature range adjustable 20-85°C
Temperature control +/- 2°C
Max. inlet temperature 100°C
Body in brass (EN 12165 CW617N)
24V 6A
Transformer included

Note: These valves are sized by flow rate, not by pipe size. Please speak to our technical team if you need further assistance.

Conditional guarantee:
5 years parts and labour
